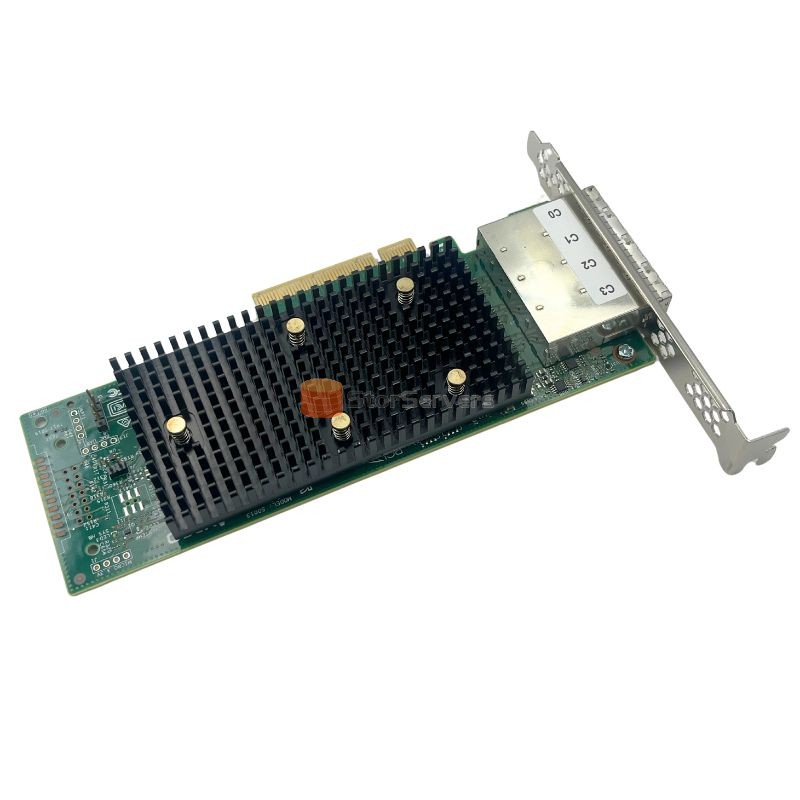

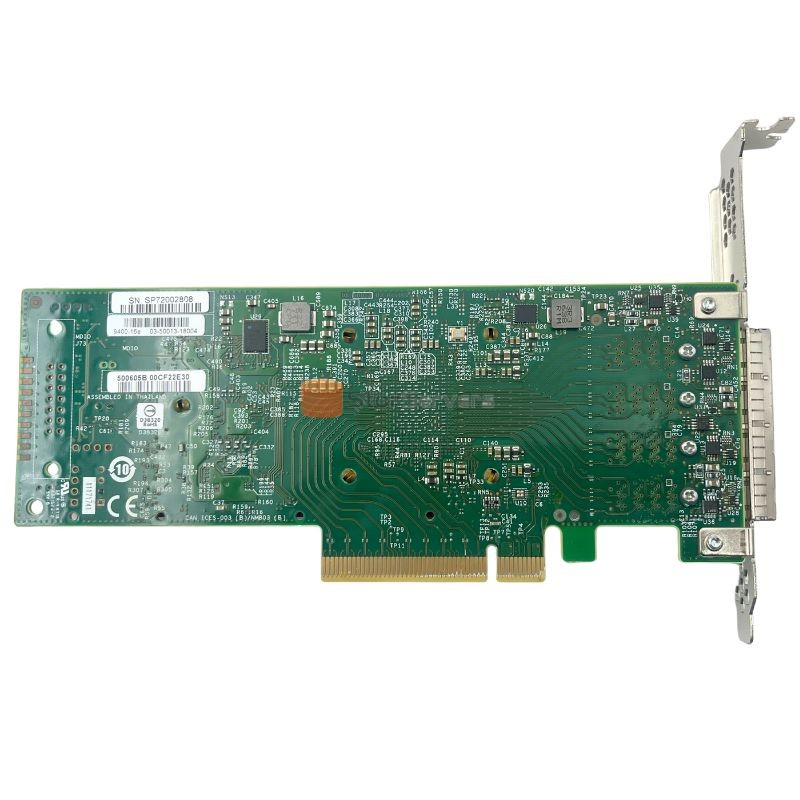

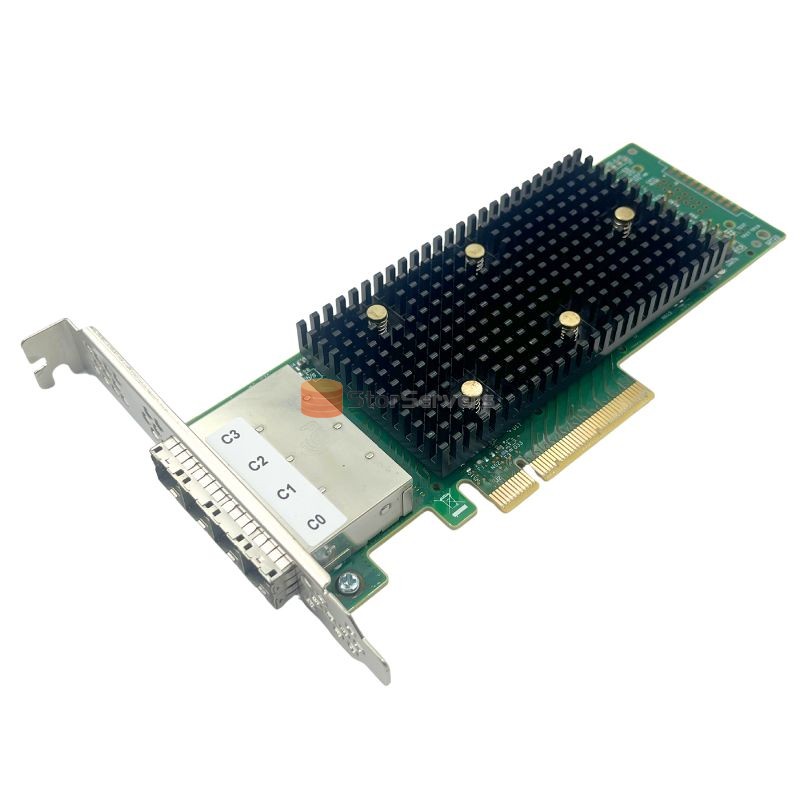

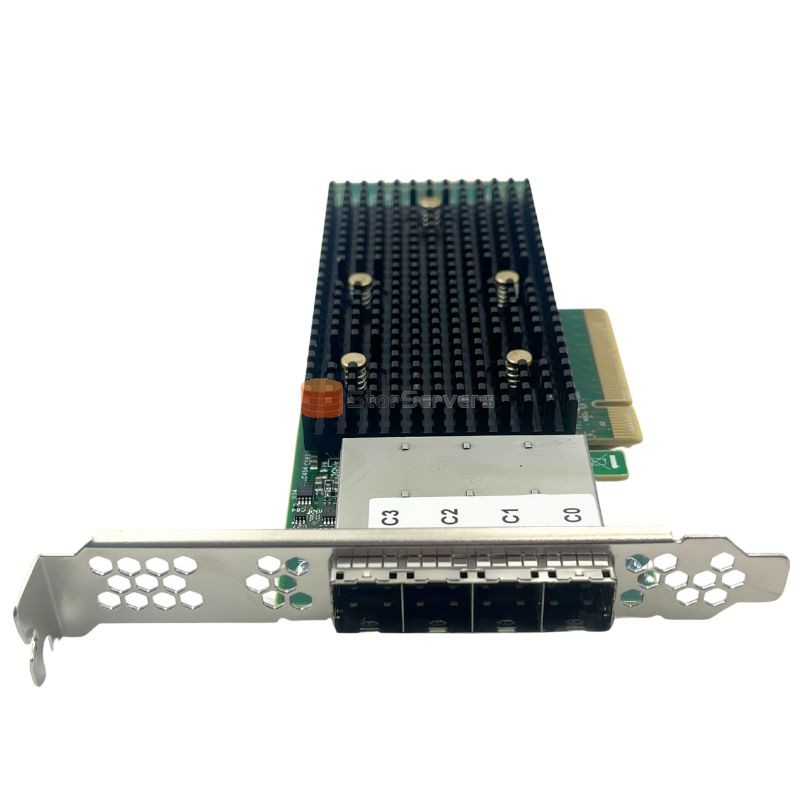

9400-16e SAS/SATA/NNVMe 12Gb/s HBA PCIe 3.1 x8
Applications
The 9400-16e is a high-performance three-mode HBA controller introduced by Broadcom (the original LSI), designed for enterprise servers that need high-density external storage connections. It adopts SAS3416 chip, provides 16 12Gb/s external channels, supports SAS/SATA/NVMe devices, only supports JBOD pass through mode, no cache design, suitable for storage environments that do not require RAID function but pursue high bandwidth and stability.
Key Features
- Supports data transfer rates of 12, 6, and 3Gb/s SAS, as well as 6 and 3Gb/s SATA
- Up to 8 storage interface PCIe links. Each link supports up to 8.0 GT/s (PCIe Gen3) x4 or x2 link width per channel
- Compliant with SFF-9402 standard, connector pin allocation
- Compliant with SFF-8485 standard, SGPIO
- PCIe 3.1 Host Interface
- High port SAS/SATA/NVMe adapter suitable for direct high connectivity applications
- Three mode connection can realize the maximum psychic activity in data
- Flexible cloud computing solutions
- External storage that requires high connectivity SAS/SATA interfaces for host or drive side connections
Specification
| Model |
9400-16e |
| Form factor |
Low Profile |
| Host Connector |
PCIe 3.1 x8 |
| Port interface |
12 Gb SAS |
| Number of ports |
16 |
Port connectors
|
4 SFF-8644 (Mini SAS HD) interfaces |
Drive interface
|
SAS/SATA/NVMe |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
