/ Maison /Carte réseau /| model | MCX354A-TCBT |
| Lifecycle | Active |
| Max Speed |
40GbE |
|
Connector Type
|
QSFP+ |
| Warranty | 3 Years |
Modèle :
MCX354A-TCBTNuméro d'article :
MCX354A-TCBTType de colis :
CartonTaille du paquet unique :
26*20*8 CMPoids brut unique :
0.54 KGMin. commande :
1 PieceExpédition :
Contact supplier to negotiate shipping detailsPaiements :
Western Union、L/C、T/T、MoneyGram、D/A、D/PRetours et remboursements :
Returns & refunds acceptgarantie :

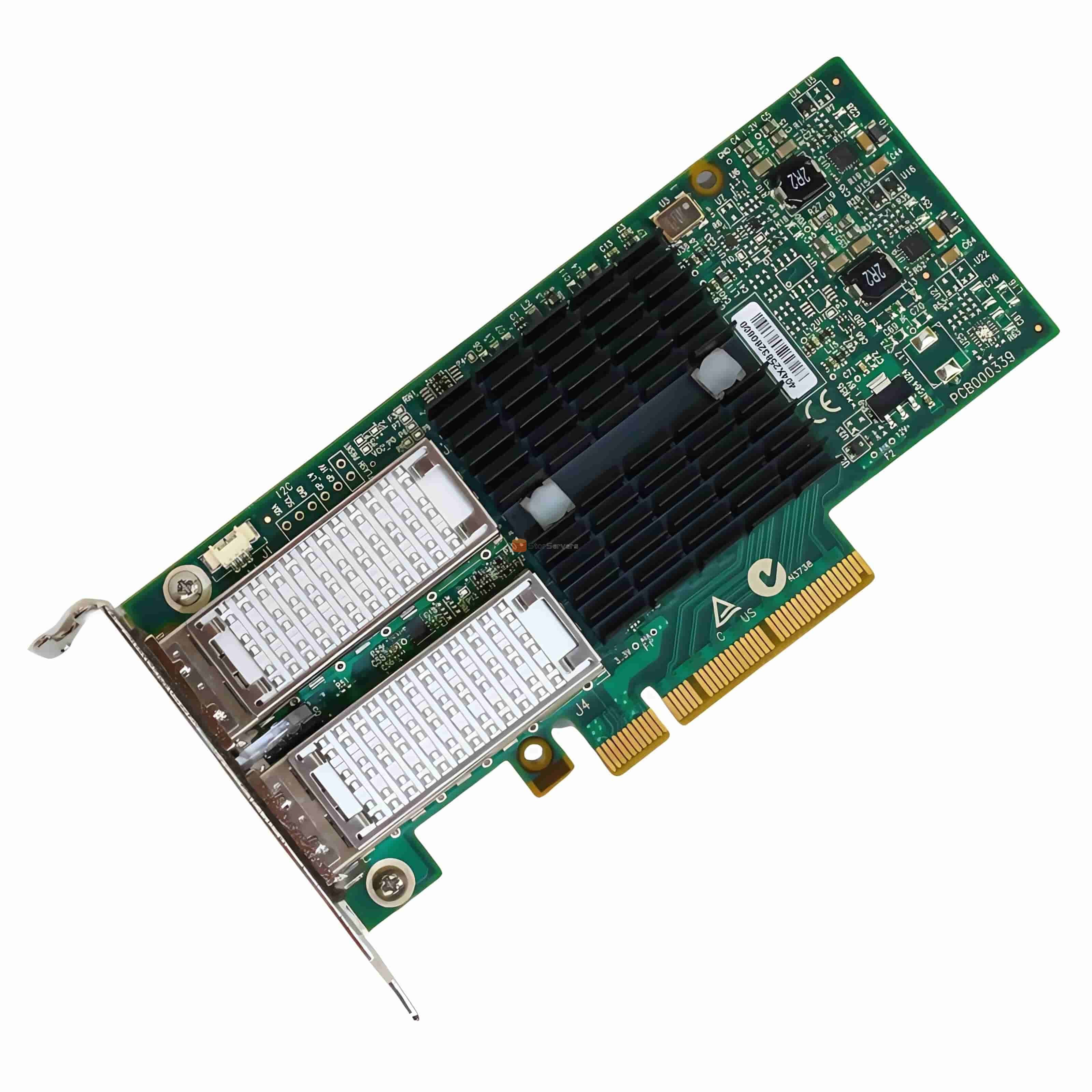

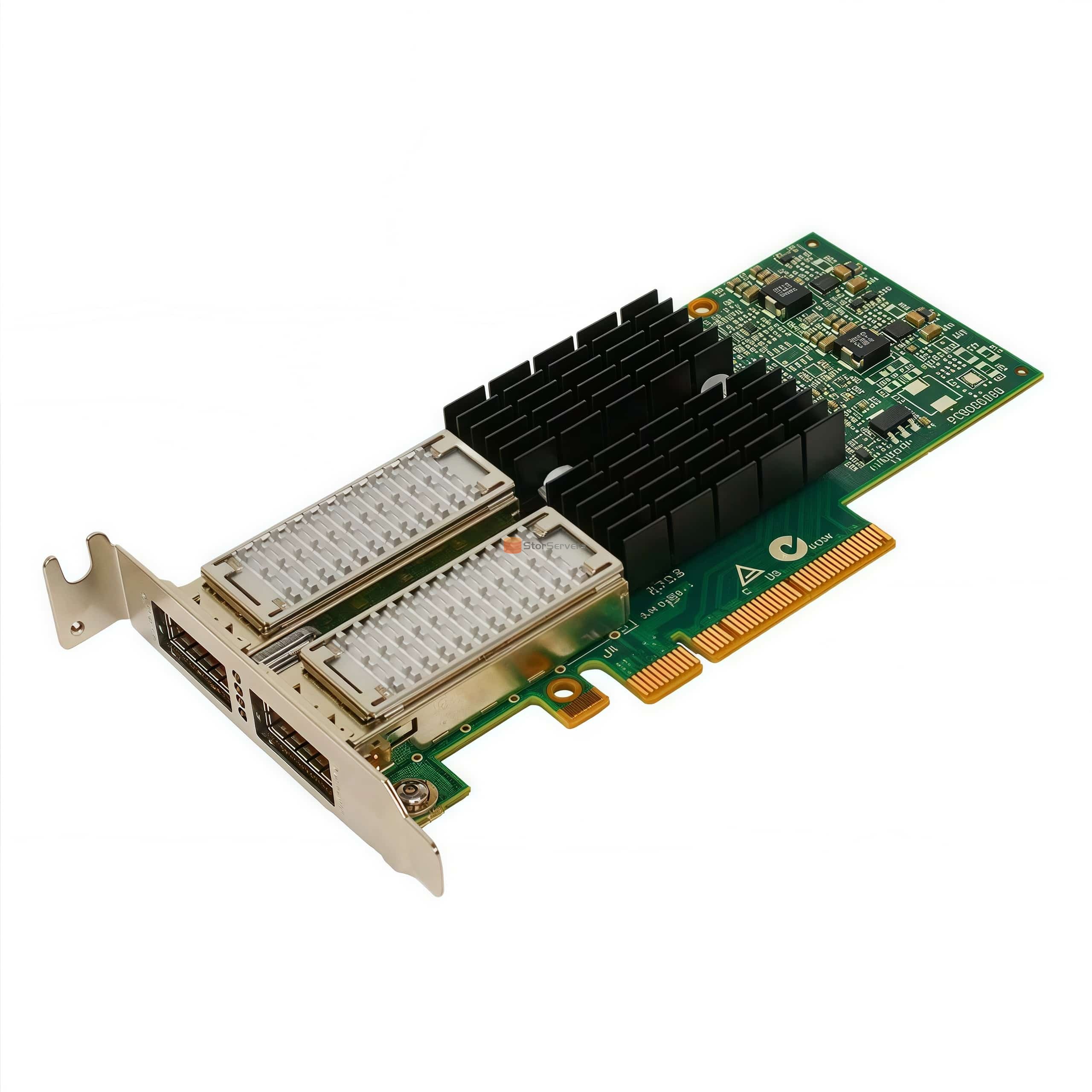

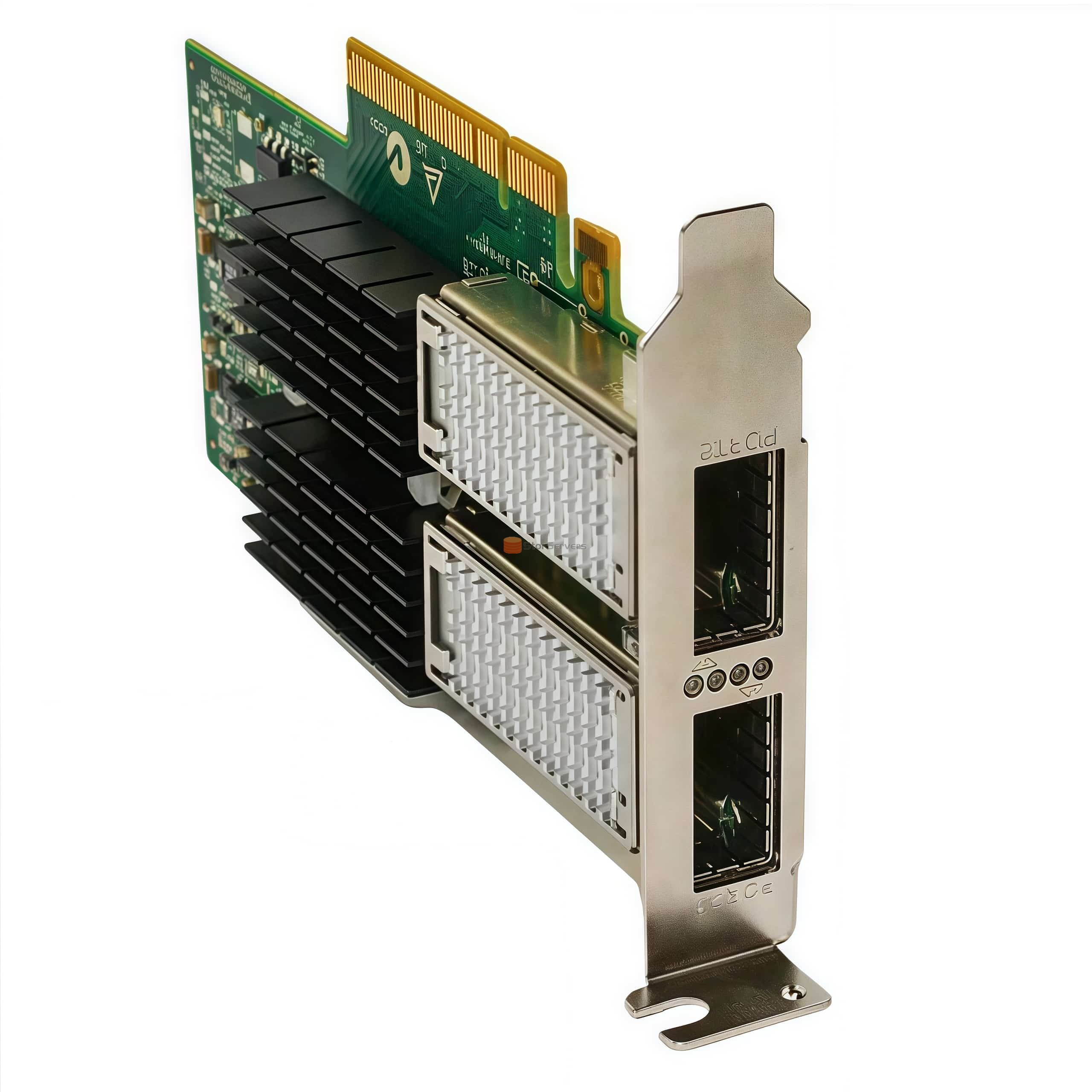

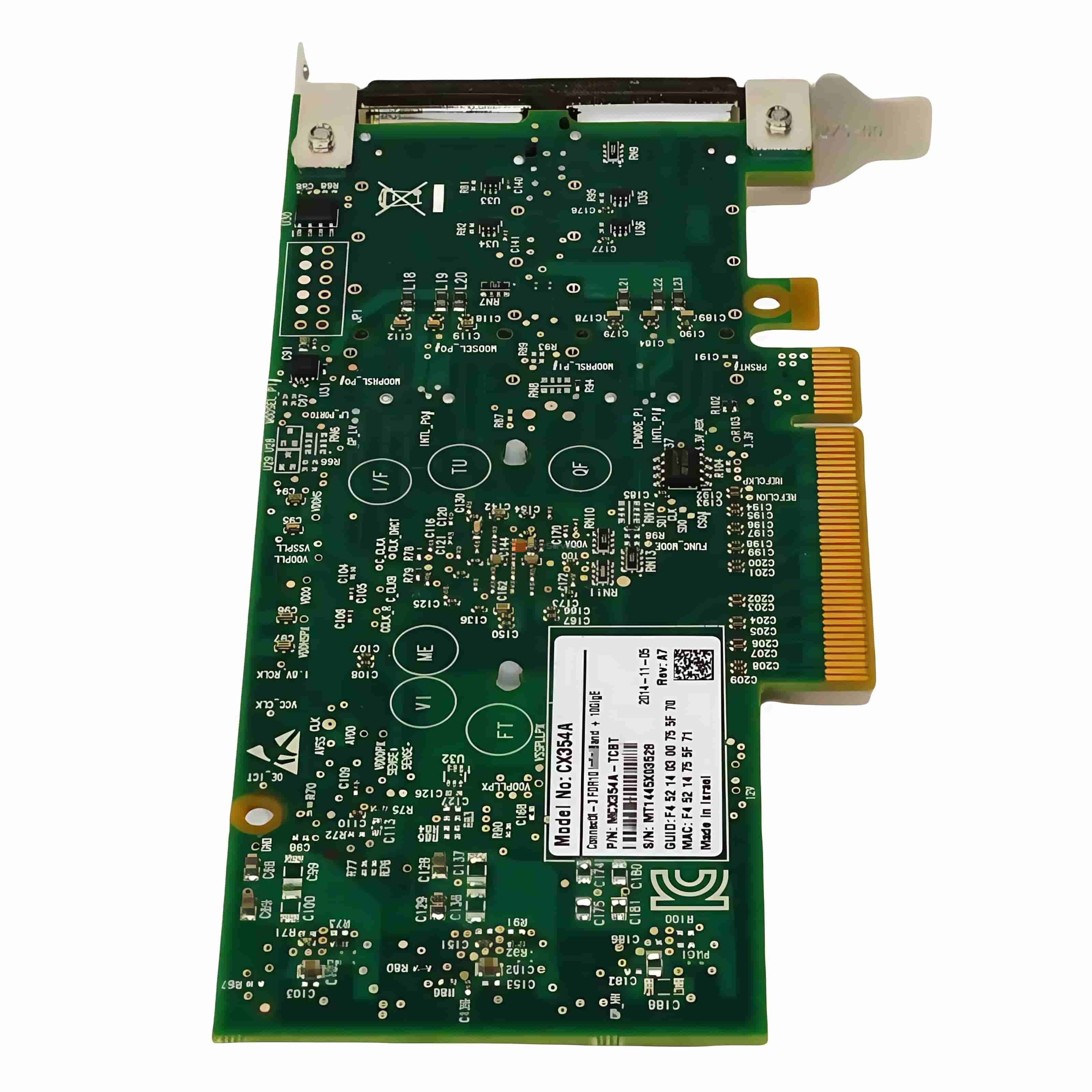

3 YearsController and Bus: Controller: ConnectX-3. Bus: PCIe 3.0 x8, 8GT/s, backward compatible with PCIe 2.0/1.1. Chip code: CX354A. Port information: Number of ports: 2 x QSFP+. Protocol mode: VPI (each port can independently switch between InfiniBand/Ethernet). IB mode: FDR10 40Gb/s InfiniBand. Ethernet mode: Single port up to 10GbE (emphasis!)! Cannot run 40GbE). Paired with QSFP+to SFP+modules, 10G optical modules can be used. Heat dissipation and baffle: Heat dissipation method: passive heat dissipation (fanless). Standard configuration: Full height baffle, packaging comes with half height baffle. Core functional features: RDMA: RoCE v1, native InfiniBand RDMA. Virtualization: SRIOV, up to 127 VFs; VMQ, NetQueue. Hardware uninstallation: TCP/UDP checksum LSO、LRO、 Giant frames. VXLAN/NVGRE hardware uninstallation is not supported. Supports PXE boot GPU Direct RDMA。 Delay: IB mode MPI ping delay<1 μ s. Operating system compatibility: Linux, Windows Server, VMware SQLite, FreeBSD.
Key Features
| Model | MCX354A-TCBT |
| Form Factor | PCI-E Card |
| Interface (Bus) Type |
PCIe 3.0 x8 |
| Network Interface | 40GbE |
| Bracket height | Full height/Half height |
| Ports |
Dual port QSFP+ |
Lead time
| Quantity (pieces) | 1-10 | 10-60 | >60 |
| Lead time (days) | 3 | 3-5 | To be negotiated |
