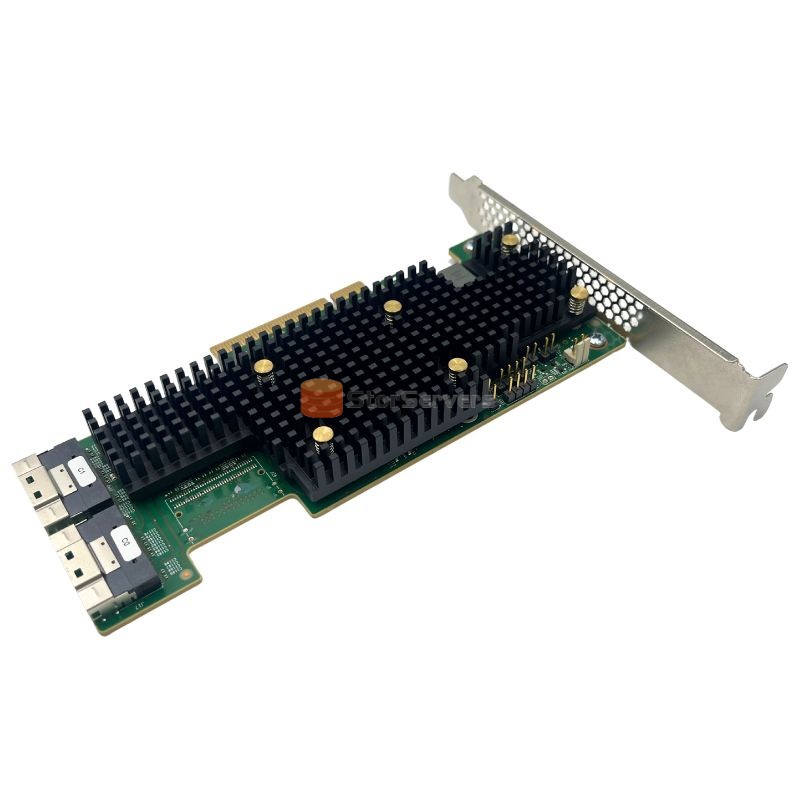

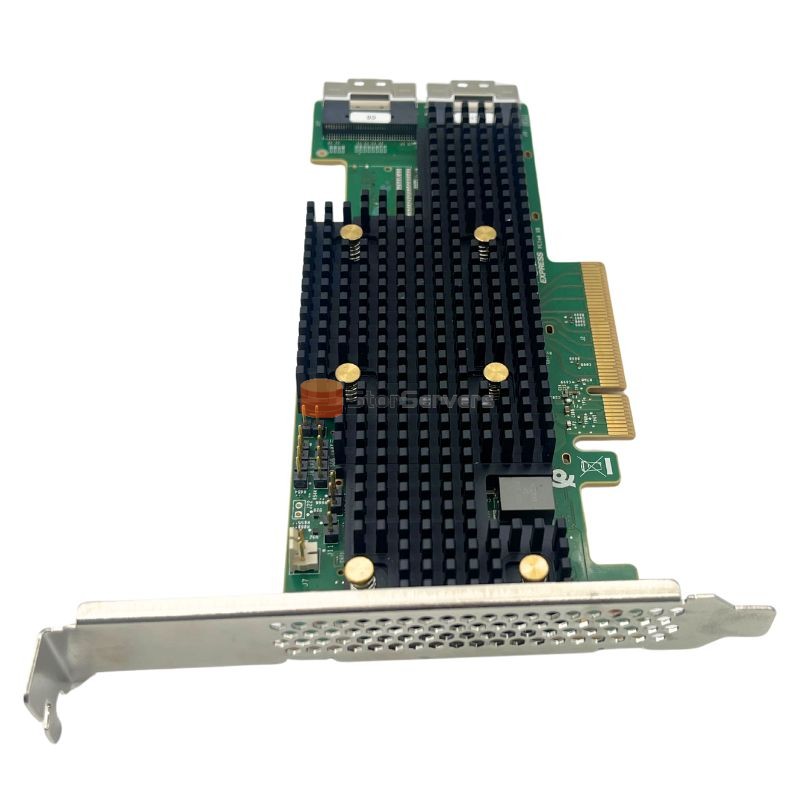

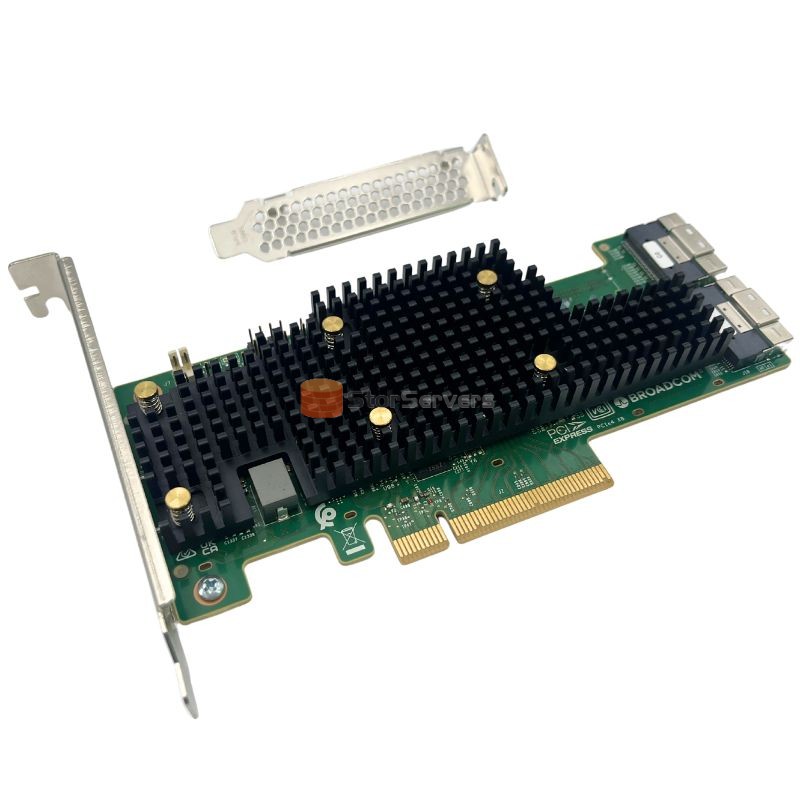

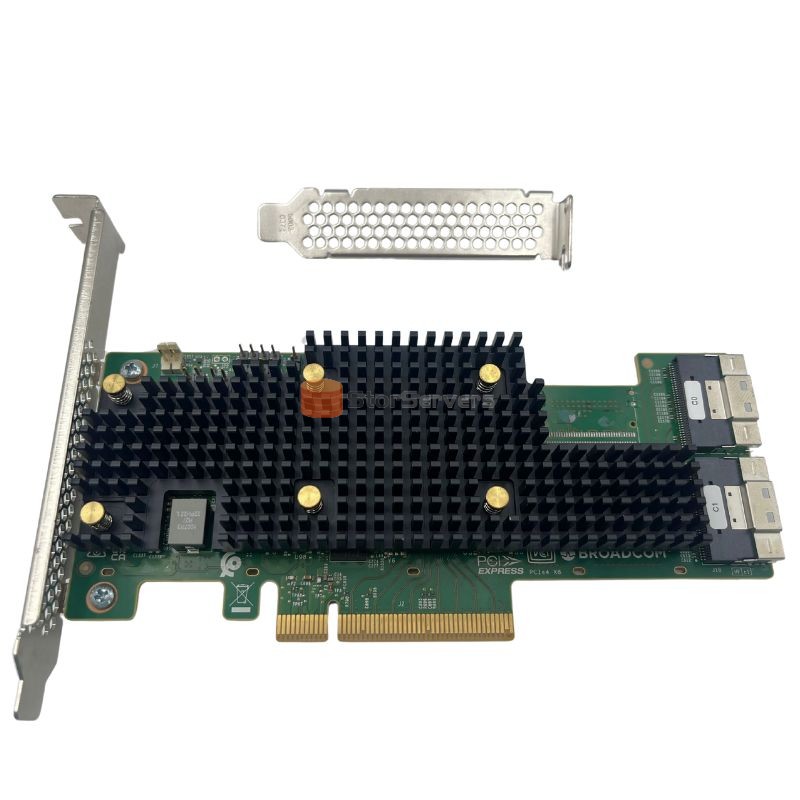

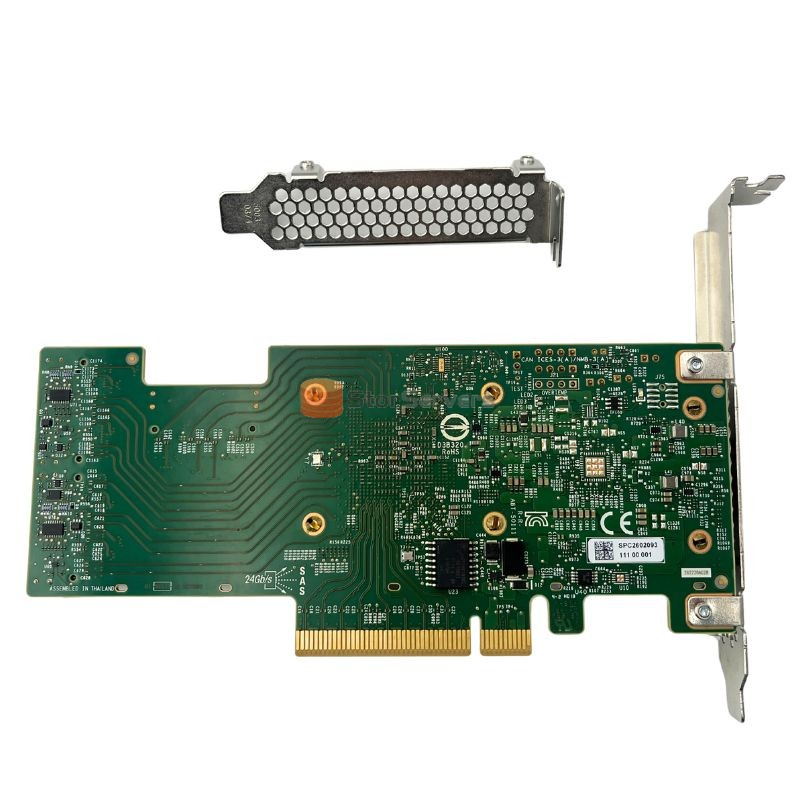

05-50111-00 9600-16i SATA/SAS/NVME 24Gb/s SAS, 6Gb/s SATA PCIe 4.0 x8
Applications
The new Broadcom 9600 family of 24G SAS MegaRAID adapters and HBAs address the performance shift that today’s data centers are facing as they transition to higher core count CPUs and SSD-based server storage.
The 9600 series Tri-Mode RAID adapters and eHBAs enable high-performing 24G serial-attached SCSI (SAS), PCIe Gen 4.0 storage connectivity, and flexible system designs to support NVMe, SAS, and SATA devices.
The 16- and 24-port 9600 series adapters are powered by the Broadcom 8th generation of Tri-Mode 4000 series I/O Controllers (IOC) and 4100 series RAID-on-Chip (ROC) families, based on the industry-leading Fusion MPT (Message Passing Technology). MegaRAID and eHBA 9600 series of adapters deliver 2x the bandwidth and up to 2x the IOPS (4K RR); with the MegaRAID adapters also delivering more than 3x the RAID 5 IOPS (4K RW).
Broadcom continues to offer the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Broadcom provides the building blocks for storage solutions that help customers prioritize, store, protect, and secure critical data.
Key Features
- 3rd-Generation Tri-Mode Storage Interface
- 22.5, 12, and 6Gb/s SAS and 6Gb/s SATA data transfer rates
- x16 and x8 PCIe Gen 4.0 Host Interface
- Hardware Secure Boot and Attestation
- Universal Backplane Management (UBM) ready (SFF-TA-1005)
- Unified Drivers and Utilities
- High-port, direct-attached SAS/ SATA/NVMe high-connectivity applications
- Flexible solutions for cloud computing
- Server and external storage applications
- 2 SFF-8654 SlimSAS connectors
- 22.5 Gb/s SAS, 6 Gb/s SATA, and PCIe Gen4 NVMe
- 240 SAS/SATA devices or 32 NVMe devices
- Supports 240×18TB SAS HDDs or 32×15.36TB NVMe SSDs
- TCP/UDP Checksum Offload
Specification
| Model |
9600-16i |
| Form factor |
PCIe low profile |
| Ports |
16 internal |
| Host Connector |
PCIe 4.0 x8 |
| Connectors |
2 ×8 SFF-8654 |
| Form Factor |
LP-MD2 |
Devices Supported
|
SAS/SATA: 240; NVMe: up to 32
|
Drive interface
|
SATA/SAS/NVME |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
