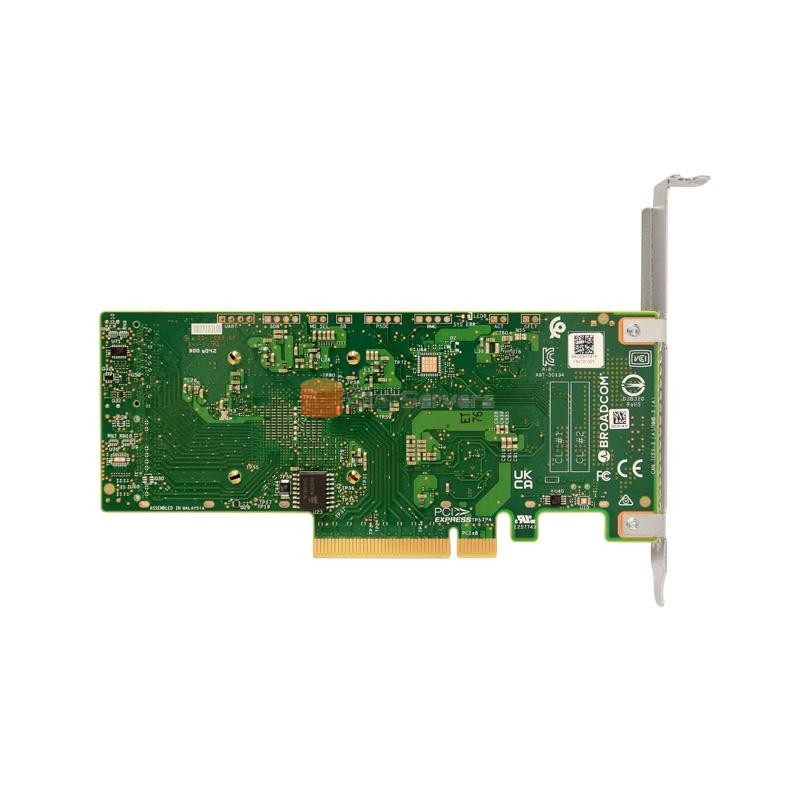

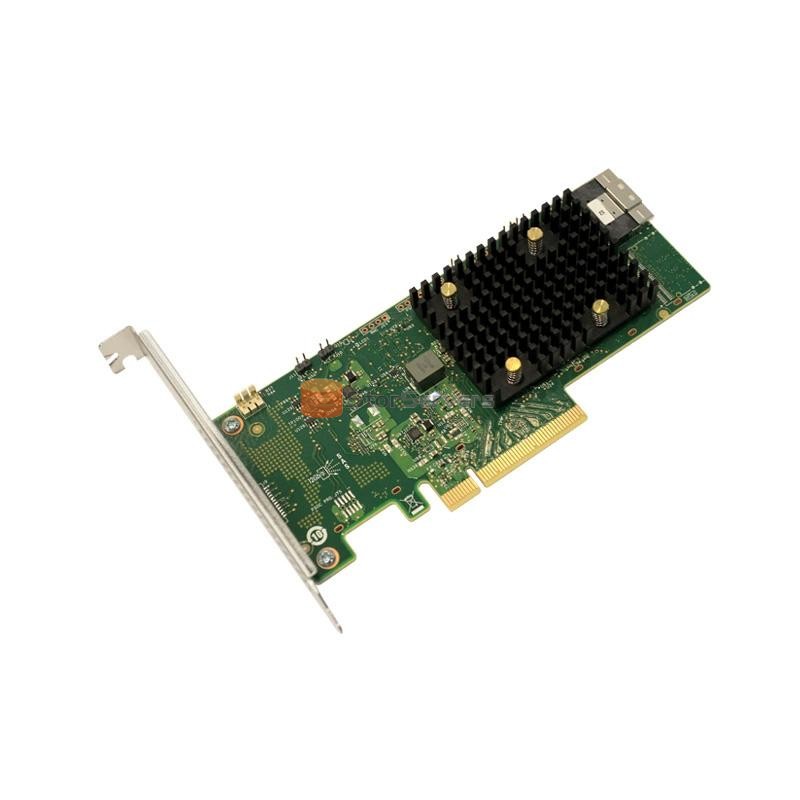

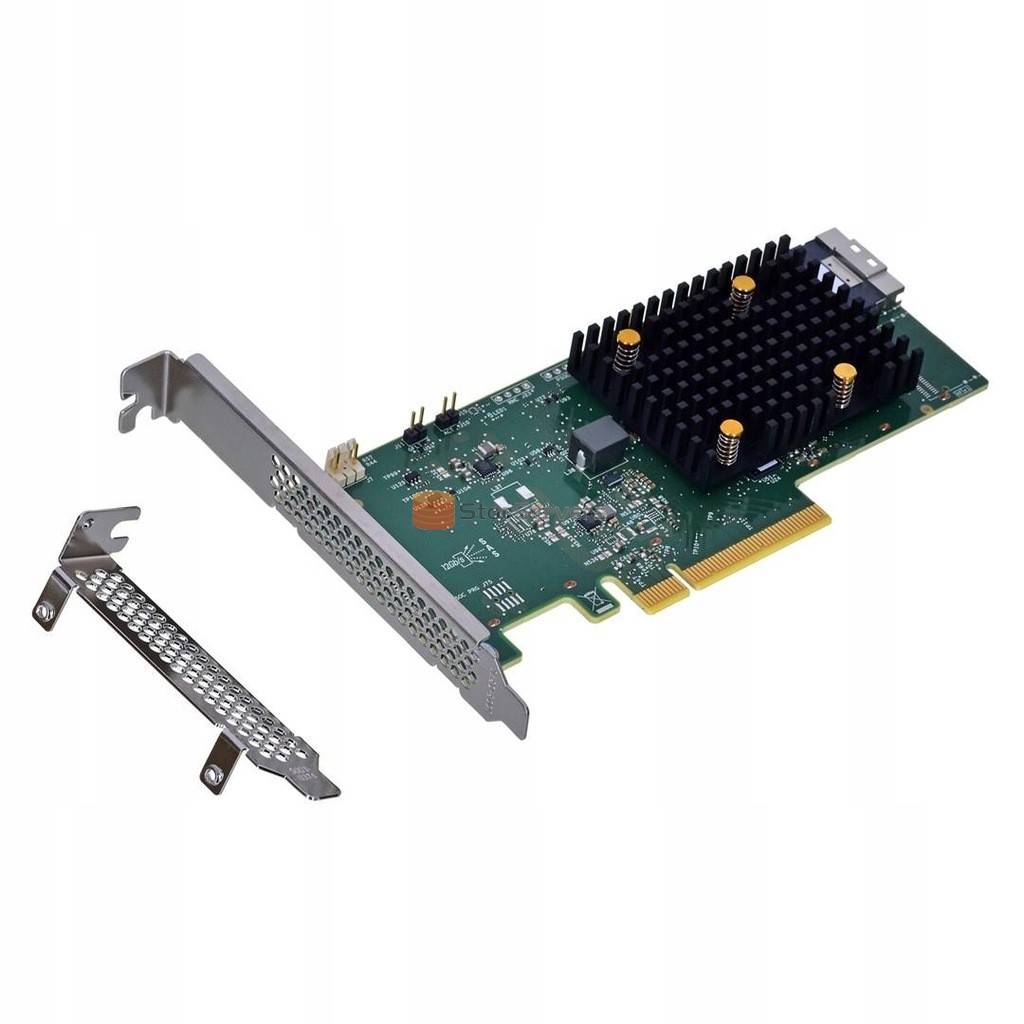

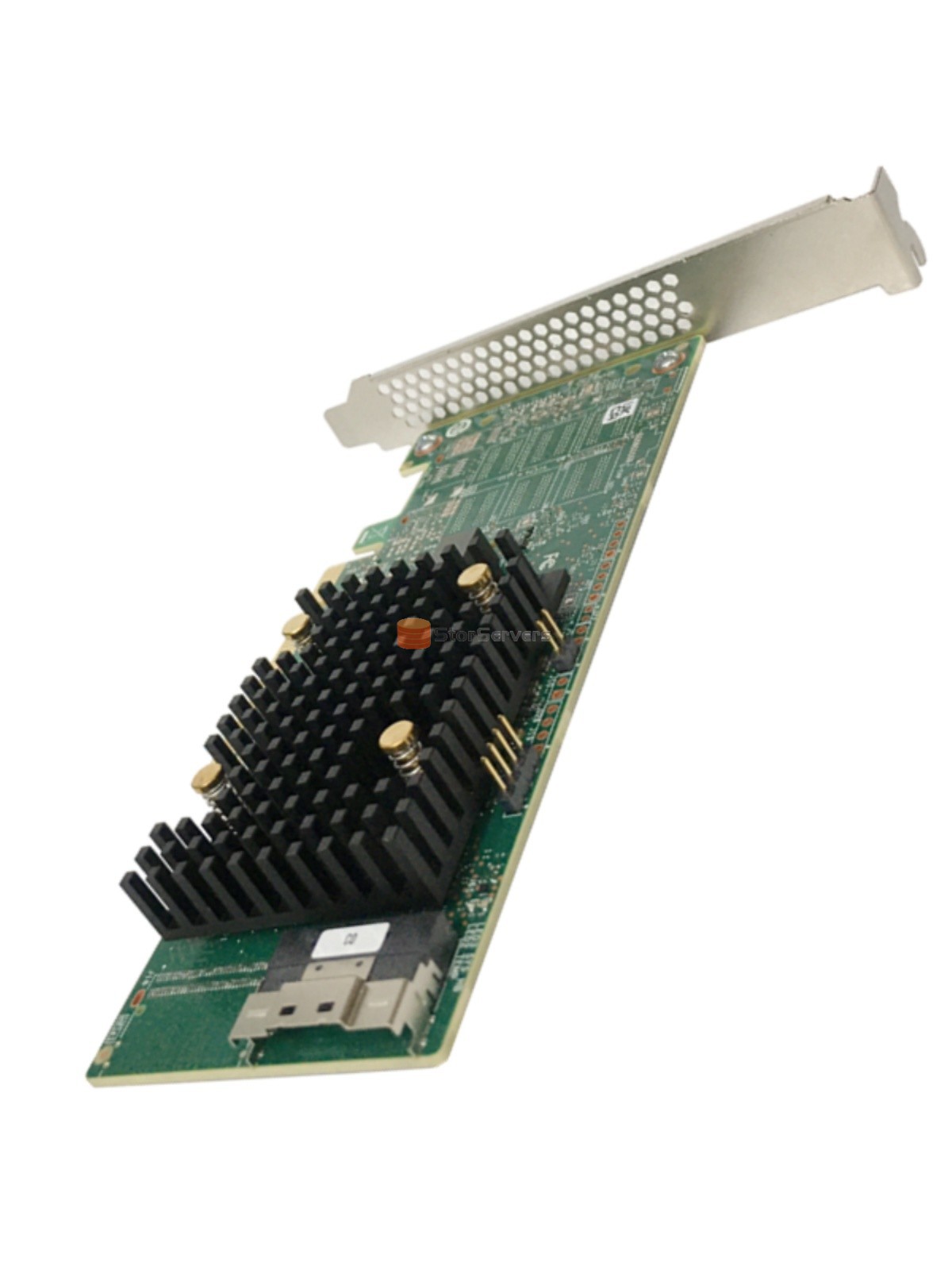

SAS SATA RAID controller 9540-8i 05-50134-03
Applications
The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9540-8i adapter, based on the SAS3808 PCIe 4.0 x8 IO Controller (IOC) device, delivers twice the performance of previous generations. Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9540-8i Tri-Mode Storage Adapter is a PCIe Gen 4.0 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of critical applications.The adapters' Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enable the operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.
Key Features
• Connect up to 63 SAS/SATA devices and 4 NVMe devices
• 1 x8 SFF-8654 (SlimSAS)
• Balance the protection and performance of critical applications using RAID 0, 00, 1, and 10
• SAS3808 12Gb/s Tri Mode ROC chip
• No cache
Specification
| Model |
9560-16i |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
SAS3808 |
| Connectors |
1 x8 SFF-8654 (SlimSAS) |
| PCIe Host Interface |
PCIe 4.0 x8 |
| RAID Levels |
0, 00, 1, 10 |
Form Factor
|
Half height and half length (155.52mm × 68.77mm)
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
